Vision Network supplies a G.fast NTD for G.fast services.
The NTU is the service demarcation point for G.fast services.
Current G.fast NTU hardware description is outlined below. Vision Network reserves the right to
change the NTU specifications in future.

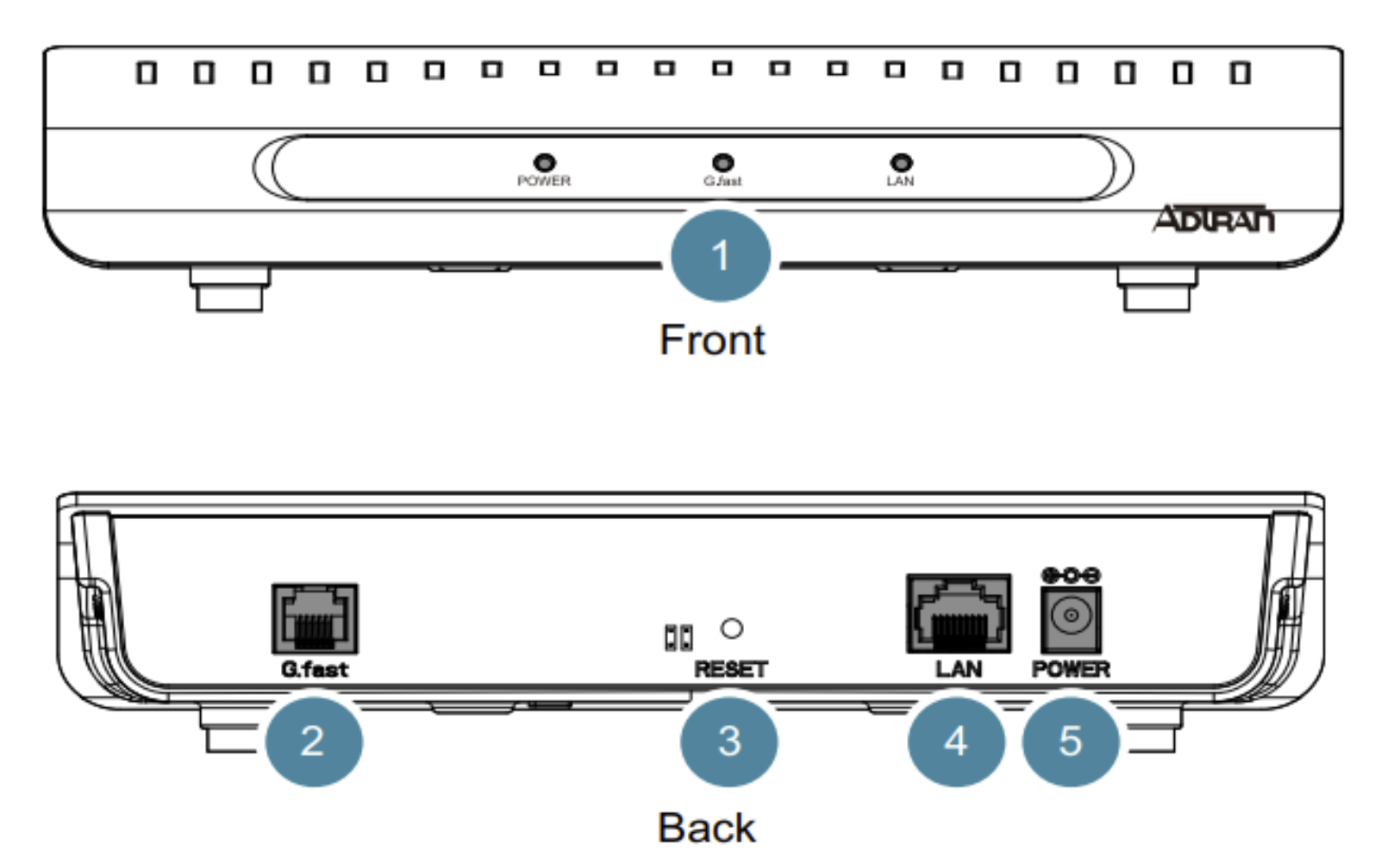

| Number | Description |
|---|---|
| 1 | Status LEDs (Power, G.fast, LAN) |
| 2 | G.fast uplink port (RJ11). Connect to phone socket |
| 3 | Factory Reset button |
| 4 | LAN port (100/1000Base-T RJ45). Customer supplied CPE must be connected to the LAN port |
| 5 | 12V power connection. Connect the included AC/DC power adapter |
| Note | The unit displayed in this product specification may change. Vision Network will provide commensurate diagrams and documentation for any additional units we may supply. |
