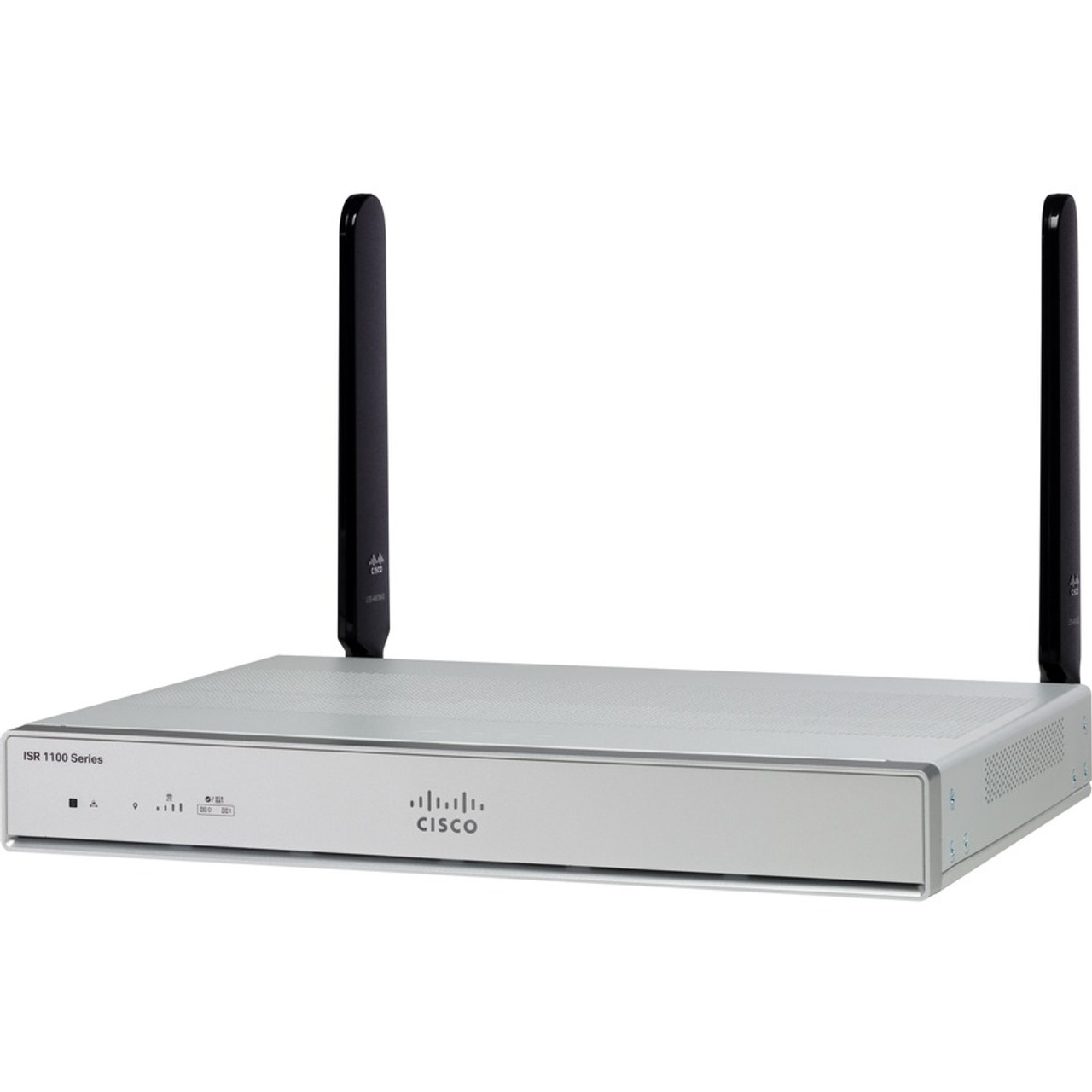

Cisco C1117 Managed Router

The Cisco C1117 is a high-performance router designed for enterprise branch offices that require secure and reliable internet access. This router supports all NBN TC4 services, as well as Enterprise Fibre and Fixed Wireless connections up to 1 Gbps.

With advanced features like multi-uplink failover, Wi-Fi and VPN support, it provides robust solutions for businesses that depend on continuous uptime and secure connections.

Key Specifications

• Max Speed: Supports up to 1Gbps service speeds
• Supported Connectivity: NBN (FTTN, FTTC, FTTP, HFC), Enterprise Fibre, Fixed Wireless (up to 1 Gbps), LTE Wireless for 4G backup, MPLS Private Network (IPWAN), Internet
• Ports:
  • 4x Gigabit Ethernet LAN
  • 1x Gigabit Ethernet WAN
  • 1x VDSL2 port
  • LTE Advanced for backup connectivity
• WiFi: Integrated dual-band 802.11ac for fast wireless performance

Advanced Features Breakdown

• VPN Support: The Cisco C1117-4PLTELAWZ provides full support for IPsec, SSL VPN, and DMVPN (Dynamic Multipoint VPN). These protocols allow secure remote access for employees and enable secure communication between multiple office locations, ensuring data integrity and security.
• Integrated Security: Equipped with Cisco IOS Firewall, the C1117-4PLTELAWZ offers advanced security to safeguard network traffic.
• QoS (Quality of Service): The integrated QoS feature ensures that critical applications, such as voice and video conferencing, are prioritized. This guarantees smooth and consistent performance for essential tasks, even during high traffic periods.
• Multi-Layer Failover: With multi-layer failover support, the router offers up to three failover options: WAN, Ethernet, DSL/VDSL, and 4G LTE. These can be used individually or together for maximum redundancy, ensuring business continuity in the event of network failure.
• VRRP (Virtual Router Redundancy Protocol): The VRRP feature provides high availability by allowing failover between routers. If one router fails, another can take over, ensuring continuous uptime for your network.
• Routing and Traffic Management: This router supports dynamic routing protocols like BGP, OSPF, and RIP, making it easy to manage complex and scalable networks. These features allow you to efficiently manage traffic flow across multiple branches or office locations.

Use Case: Ideal for Enterprise Branch Offices

The Cisco C1117 is designed for enterprise branch offices requiring secure, high-speed internet with multiple failover options. It’s perfect for businesses using Enterprise Fibre, Fixed Wireless, or multiple WAN connections. The router’s ability to support MPLS/IPWAN private networks makes it well-suited for companies that rely on cloud applications, VoIP, and remote access. Its advanced features ensure that your business remains connected, even in the event of a primary network failure.
